Stickers of instrument cluster for Classic Mini 1978 to 1985

Selected the sticker kit corresponding to the original speed - Clubman, 1275GT, 1100 Special, HLE, Mayfair...

– / 12

Dials Stickers kit

Original Speed

Style (gloss)

Logo (not original)

Other Style (see below)

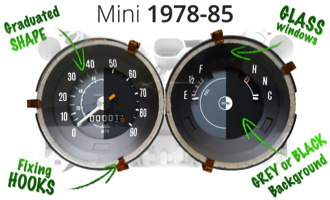

The instrument cluster for Minis between 1978 and 1985 are composed of flanges originally graduated by a screen-printed numbering. The diameter of each dial is 10 cm. The stickers are available with their graduations at 140 or 200 km/h.

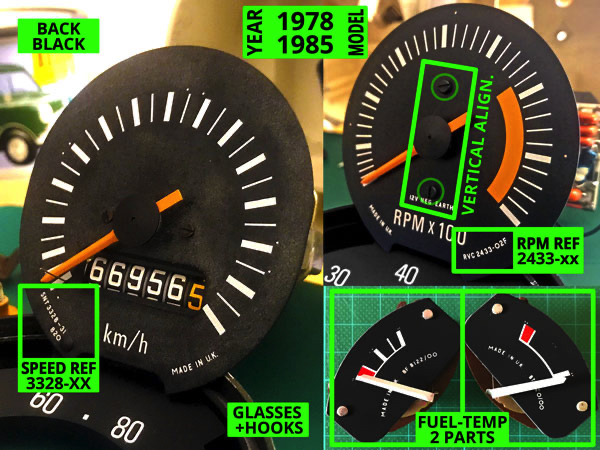

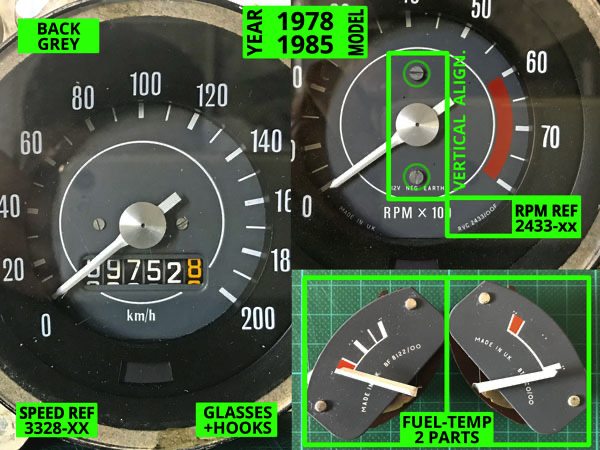

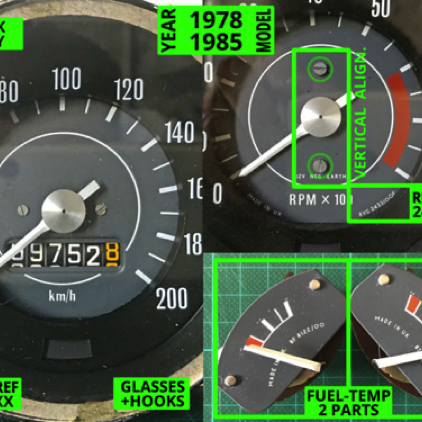

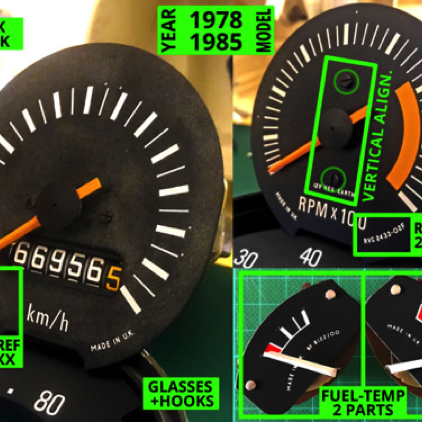

They have independent glass panes held by metal hooks. Originally in gray background for Clubman (140Kmh / 90mph), 1275GT and 1100 Special (200Kmh / 110Mph). Some models like the HLE version, Mayfair (...) have a black background and generally graduated at 140 km/h, while keeping the same references. An optional Rev with vertically arranged front mounting screws.

Stickers made for the original reference models: Speedo ref 3328-xx - Gauges ref 812x-xx in 2 parts - RPM ref 2433-xx with frontal screws arranged vertically (see photos below).

Video installation tutorial

Stickers for clocks instrument cluster of classic mini 1978-1989.

See on Youtube

Stickers for instrument cluster of Mini 1978-1985

More informations about the original model

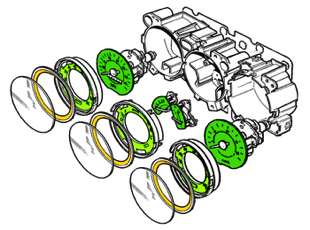

Exploded view Smiths model for Mini 1978-1985

Clocks Instrument Cluster for Mini 1978-1985

1978-1985 Smiths Identification

Follow @CedricGraphiste

Youtube

TUTO

Option : MATTE FINISH +6,00€

Advised for Magnolia, Cream, Black and Dotted Dark Gray styles.

Not recommended for carbon and wood styles.

Option : YOUR LOGO +15,00€

With your vector file or HD image 300dpi minimum - CMYK

More information

Reproduction printed in high definition.

Graduations with/out secondary speed.

The retraining of Kmh speed to Mph is possible for 140kmh versions to 90mph and 210kmh to 120mph (and vice versa).

Logo (not original) placed in the center of the dial of fuel and temperature gauges.

An additional option is available to integrate your custom logo, file to send me in vector or high definition image. Make sure you have the rights of use!
